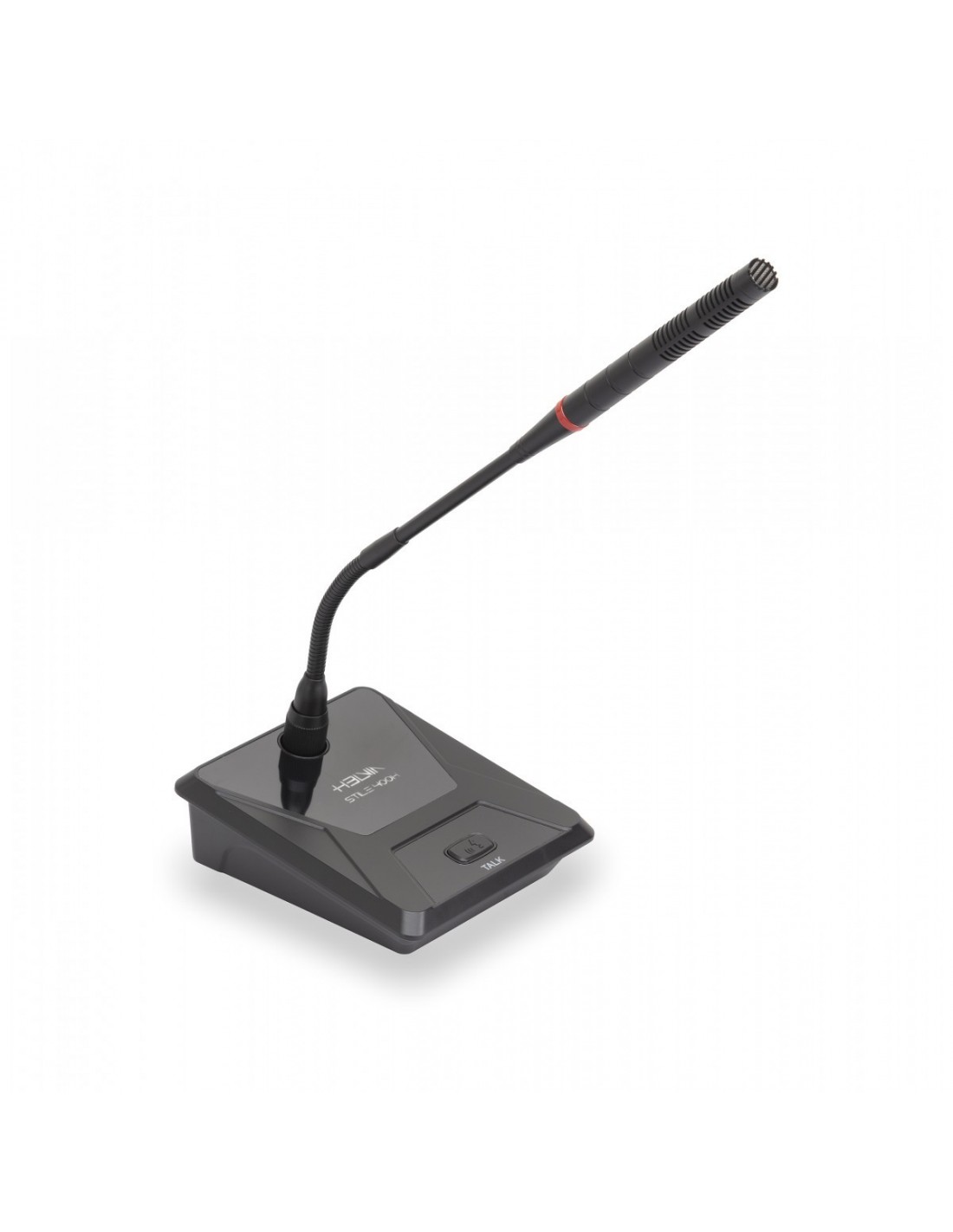

STILE 400H-SET - Helvia
Designed for high-quality sound capture in meetings and conferences
Ø9.7mm (0.38”) Condenser Capsule
Super-Cardioid Polar Pattern
50cm (20” ca.) Reference Sound-Receiving Distance
Superior off-axis rejection for maximum gain before feedback
RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
400mm long Gooseneck microphone with bend at bottom
490g heavy base with electronic touch-switch and LED
Strong 3-pin Input connector with thread
Balanced XLR output connector
3V internal Phantom Power with batteries or power adapter
Accepts external Phantom Power from 10V to 48V
Foam windscreen included and 5m cable included
• Element: Ø9.68mm (0.38”) Condenser Capsule
• Polar pattern: Super-Cardioid
• Gooseneck length: 400mm (147.48”)
• Reference sound-receiving distance: 50cm (20” ca.)
• Frequency response: 30 Hz - 20 kHz
• Sensitivity: -33 dB ±1 dB (0dB=1V/Pa @ 1kHz)
• Output Impedance: <200O(at=1KHz)
• Max input SPL: 105 dB (1 kHz @ 1% T.H.D)
• Phantom power requirement: 3V - 48V DC, 0.5 mA typical
• Protection: RFI-shielding (mobile phone / electromagnetic / high frequency interference)
• Controls: On/Off LED and Switch with electronic touch
• Batteries: 2x 1.5V AA-Type alkaline
• Power adapter (included): Input 110-240Vac 50-60Hz / Output 12V - 500mA (“+” = Central;
“-“ = Ring)
• Input Connector: 0.63” (16mm) CESS Aviation 3 pins with thread (balanced)
• Output Connector: 3-Pin XLR output connector (balanced)
• Cables: 3-Pin XLR Female to 3-Pin XLR Male, 5m length
• Microphone Size: 400 x Ø17 (157.48” x Ø6.69”)
• Wind-screen Size: 127 x Ø28 (5” x Ø1.1”)
• Base Size: 124 x 142 x 48 mm (55.9” x 48.82” x 18.9”)
• Microphone Weight: 70g (2.47oz.)
